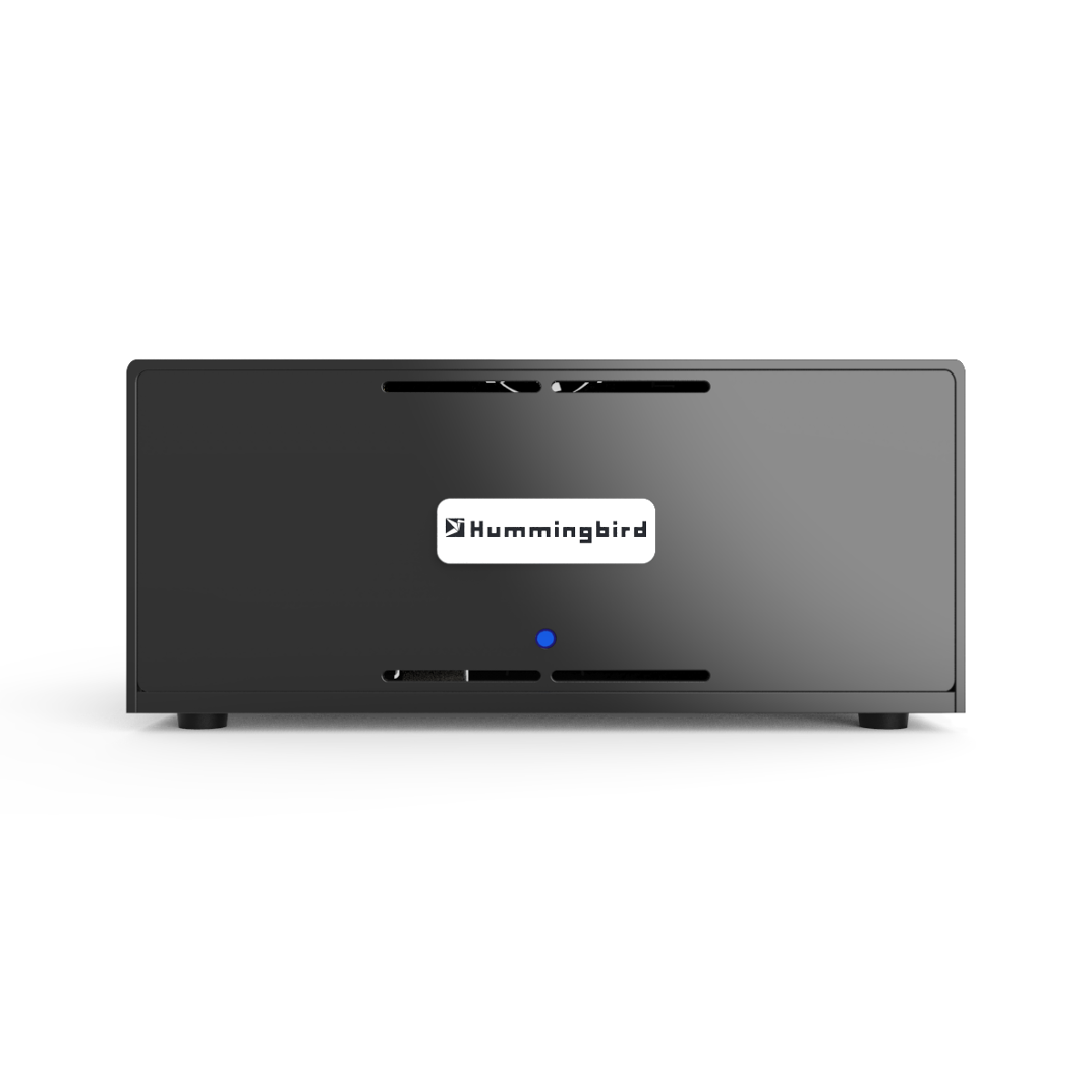

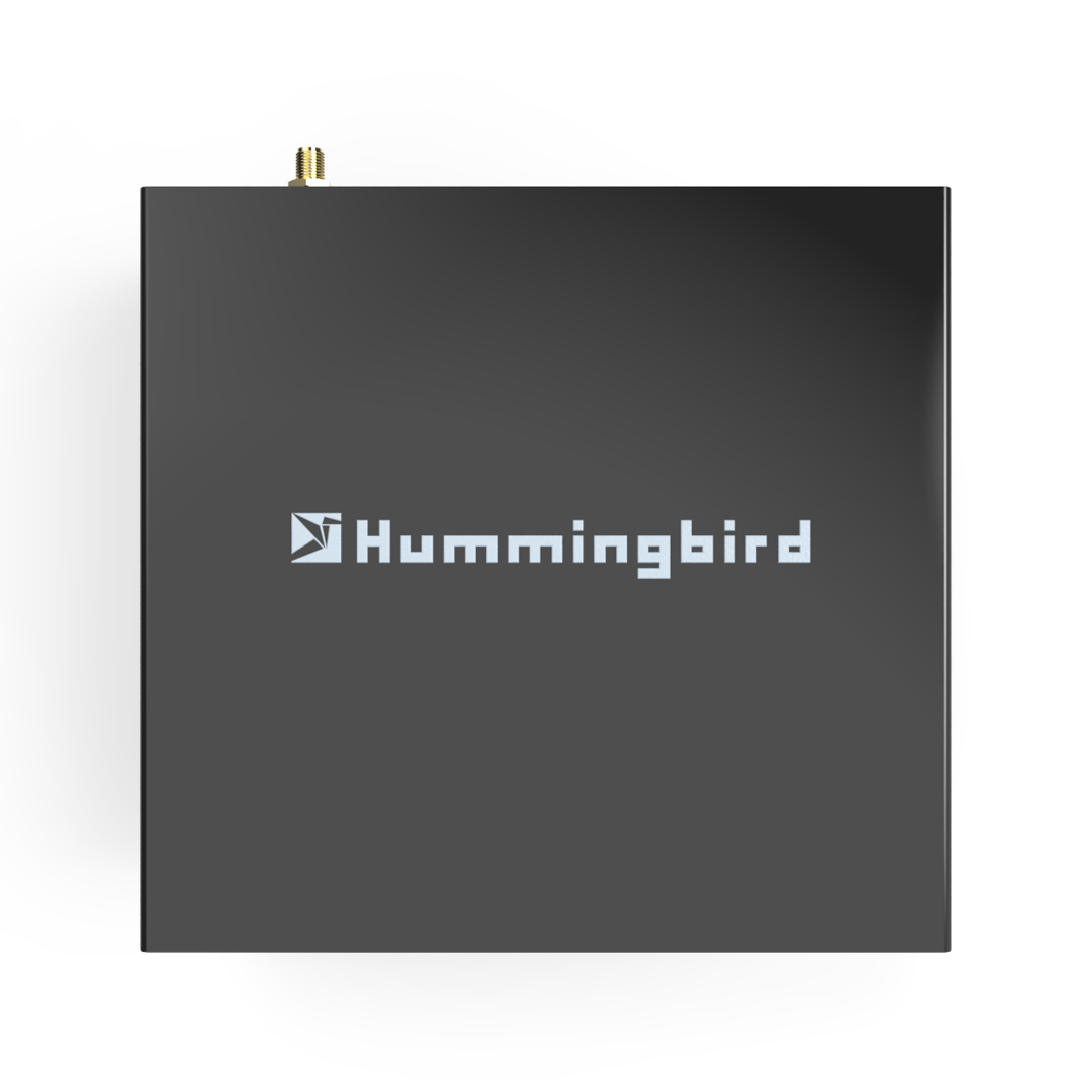

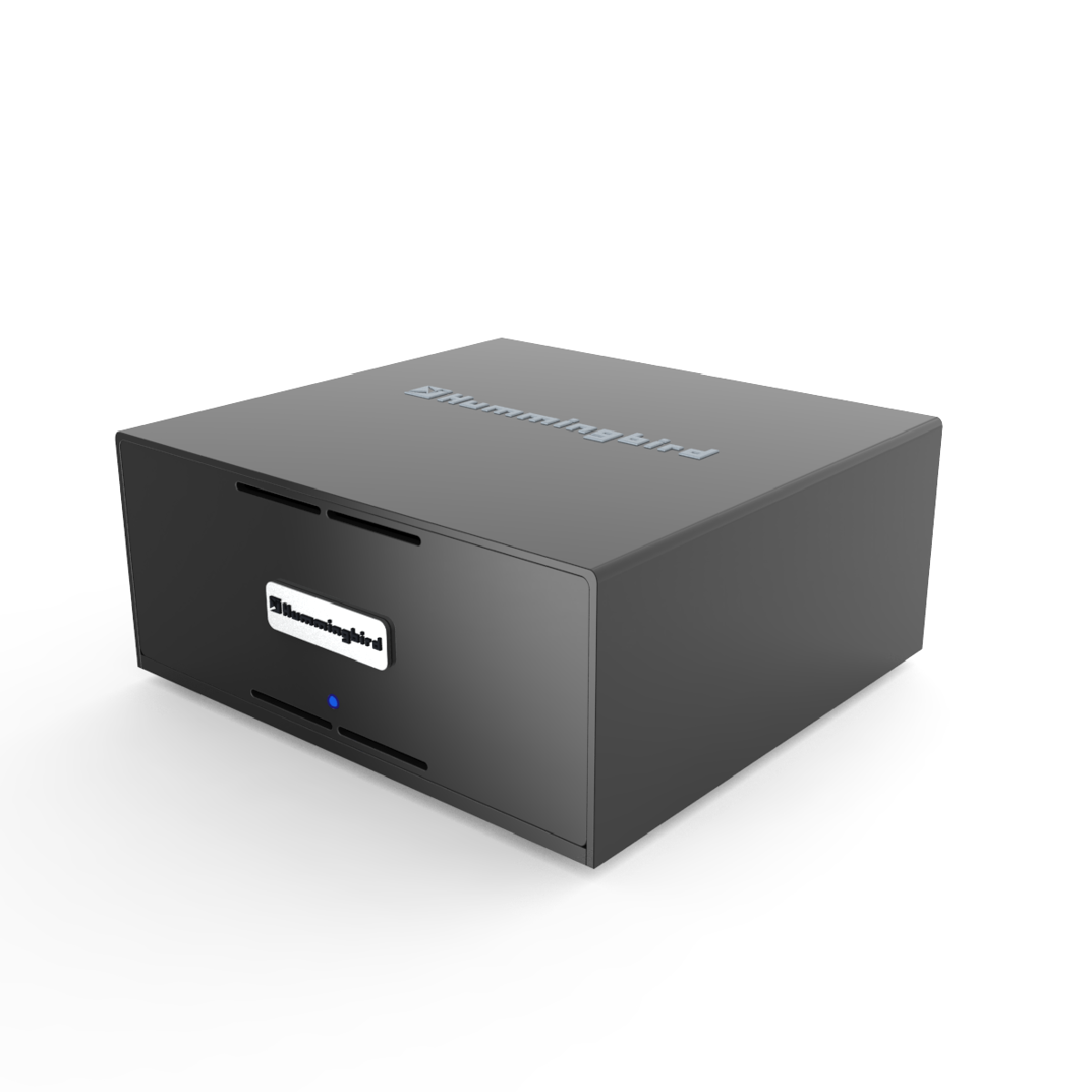

Hummingbird H500

  • LongFi™ Technology
  • Bluetooth fast network configuration
  • OTA updates regularly
  • Computing with Quad Cortex-A55/Cortex-A72
  • 2, 4GB LPDDR4 RAM
  • 32GB EMMC
  • LoRa Frequency band support: CN470 We have verified US915 EU868 AU923 AS923_1, we are woking on applying FCC & CE license.
  • SupportsDC 9V~24V&POE power supply
  • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE
  • 1G Ethernet RJ45, IPV6

Hummingbird Specifications

LoRa Specifications
470MHz~510Mhz
CN470
Capacity 8-channels uplink, 1-channel downlink
17dBm Maxium output power
Platform Configurations
Quad Cortex-A55/Cortex-A72
4GB 2, 4GB LPDDR4
32GB eMMC
2.4GHz, 5.0GHz IEEE 802.11 b/g/n/ac wireless
5.0, BLE
DC9V~24V, PoE

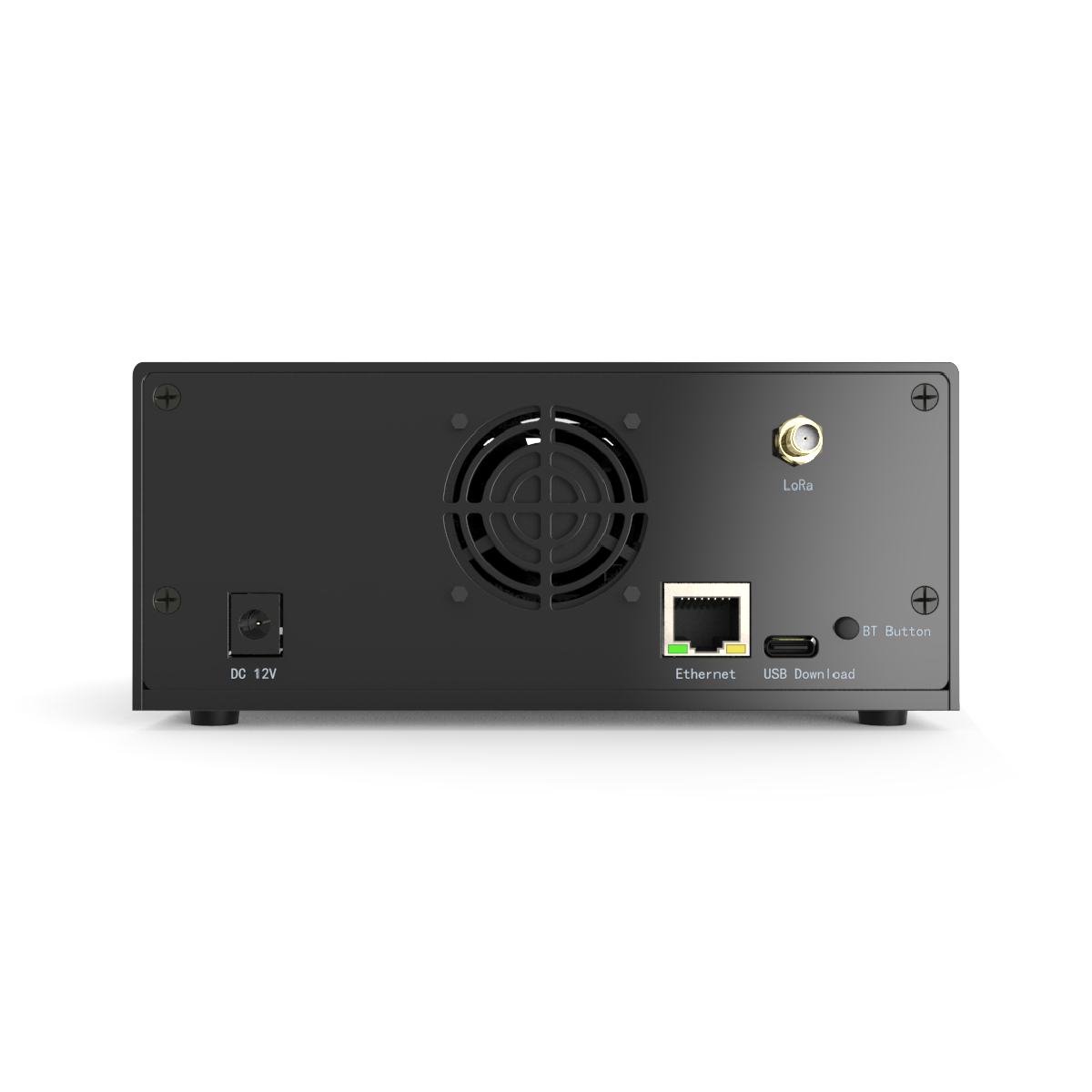

Connectors
Female SMA
1G Edternet RJ45
DC12V, PoE
USB Type-C
Physical Description
154mm x 154mm x 73mm
TypePC
0℃~60℃
20% to 90%, non-condensing
Class Item Value
LoRa Specifications LoRa Frequecny Band 470MHz~510Mhz
LoRa Channel Plan CN470
Channel Capacity 8-channels uplink, 1-channel downlink
LoRa Output Power 17dBm Maxium output power
Platform Configurations Processor Quad Cortex-A55/Cortex-A72
RAM 2, 4GB LPDDR4
Flash 32GB eMMC
Wi-Fi 2.4GHz, 5.0GHz IEEE 802.11 b/g/n/ac wireless
BlueTooth 5.0, BLE
Input voltage DC9V~24V, PoE
Connectors Antennas Female SMA
Ethernet 1G Ethernet RJ45
Power DC12V, PoE
USB USB Type-C
Physical Description Dimensions (L x W x H) 154mm x 154mm x 73mm
Chassis TypePC
Operating Temperature 0℃~60℃
Relative Humidity 20% to 90%, non-condensing

Order Contact Information

Sending an email to product@xdt.com to discuss cooperation
